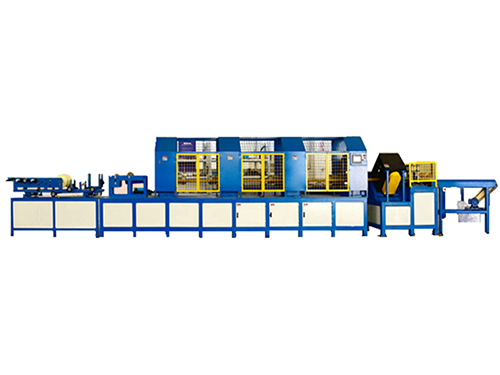

紙護角機 Paper Angle protector machine
| 技術參數 | |
| 紙護角規格 | 邊長25-120（等邊及不等邊） |
| 生產速度 | 0-30m/min |
| 主機功率 | 7.5kw |
| 控制系統 | PLC和伺服控制 |
| 速度控制 | 變頻控制 |
| 原材料 | 面紙 ？150g-200g |
| 芯紙 砂管紙300g-420g | |
| 切割方式 | 液壓切割、伺服跟蹤切斷或飛剪系統 |
| 操作人數 | 1-2人 |
| PLC | 臺達 |
| 觸控屏 | 臺達 |
| 斷路器 | 正泰 |
| 信號元件 | 飛凌 |
| 生產線外形尺寸 | 26000×1350×1880mm |
| 生產線毛重 | 6噸 |
| Technical parameter | |
| Paper Angle protector specifications | Length 25-120mm(Equilateral or unequal) |
| Production speed | 0-30m/min |
| The host power | 7.5kw |
| The control system | PLC and servo motor control |
| Speed control | Frequency control |
| The raw materials | The surface of the paper 150g-200g |
| The core of paper 300g-420g | |
| Cutting way | Hydraulic cutting, servo tracking cut or flying shear system |
| The number of operations | 1-2 person |
| PLC | DELTA |
| Touching screen | DELTA |
| The circuit breaker | CHNT |
| Signal components | FEILIN |
| Production line size | 26000×1350×1880mm |
| Production line weight | 6000KG |
